10 Years China PEEK Manufacturer

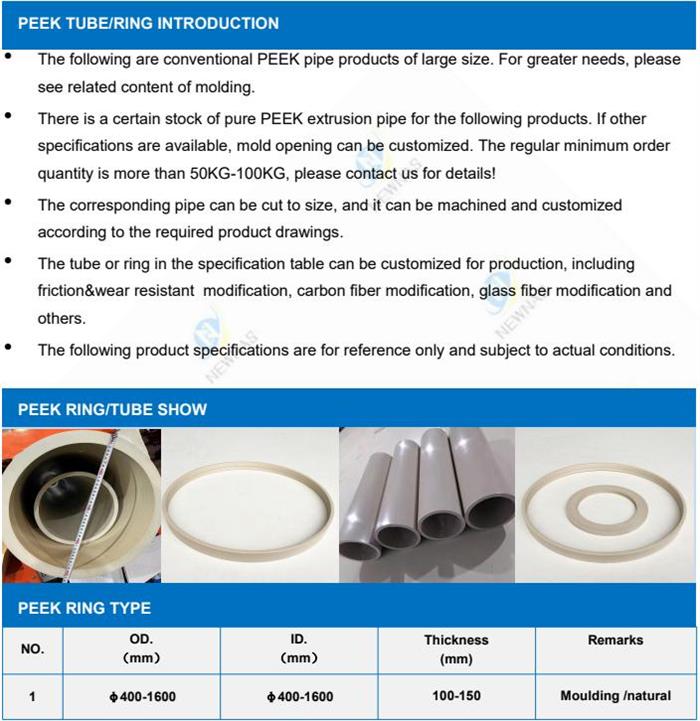

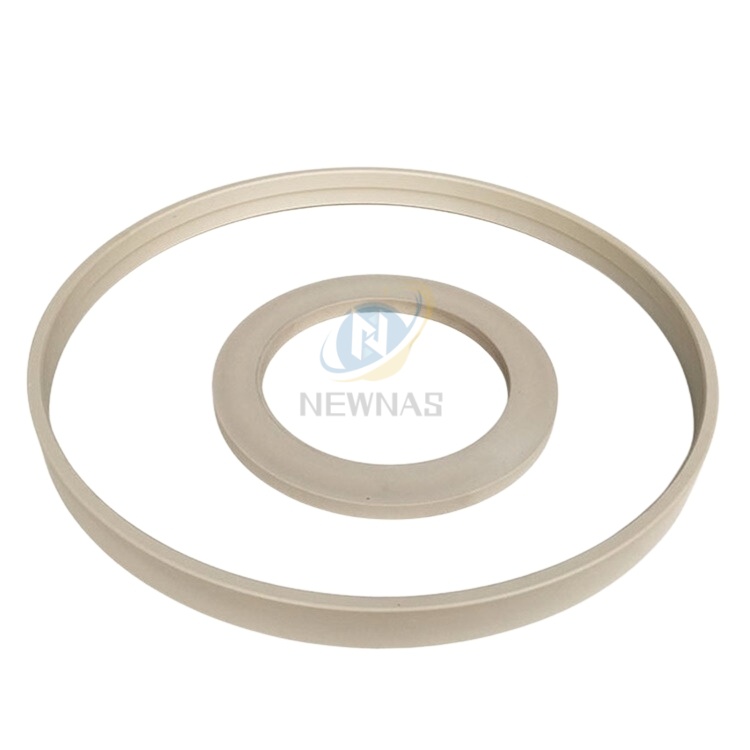

Our factory have press machines and a large number of molds for manufacturing PEEK molded rings. We can provide you with semi-finished ring materials of different wall thicknesses. The maximum diameter of the molded rings we produce can reach over 2 meters.
Meanwhile, our extruded PEEK pipe products have a wide range of stock options, which can meet the demands of most PEEK sealing products.
At the same time, we can produce PEEK sealing products. All you need to do is provide us with the product drawings and quantities we require to obtain the quotation.
|

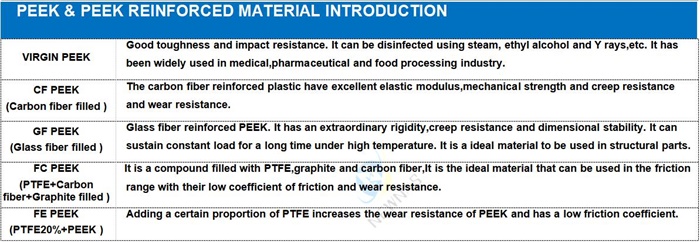

PEEK & PEEK Reinforced Material Introduction |
|
| Virgin PEEK |
Good toughness and impact resistance. It can be disinfected using steam, ethyl alcohol and Y rays,etc. It has been widely used in medical,pharmaceutical and food processing industry. |
|
CF PEEK
(Carbon fiber filled )
|
The carbon fiber reinforced plastic have excellent elastic modulus,mechanical strength and creep resistance and wear resistance. |
|
GF PEEK
(Glass fiber filled )
|
Glass fiber reinforced PEEK. It has an extraordinary rigidity,creep resistance and dimensional stability. It can sustain constant load for a long time under high temperature. It is a ideal material to be used in structural parts. |
|
FC PEEK
(PTFE+Carbon fiber+Graphite filled )
|
It is a compound filled with PTFE,graphite and carbon fiber,It is the ideal material that can be used in the friction range with their low coefficient of friction and wear resistance. |
|
FE PEEK
(PTFE20%+PEEK )
|
Adding a certain proportion of PTFE increases the wear resistance of PEEK and has a low friction coefficient. |
|

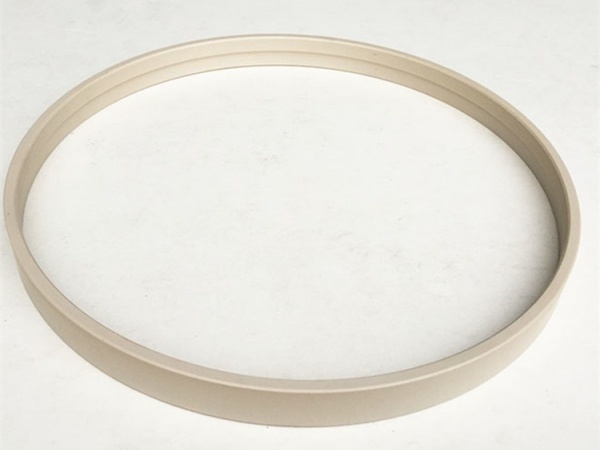

PEEK Moulding Ring Type |
|||
|
OD(mm) |
ID(mm） |
Length（mm） |
Remark |
|
φ100-2200 |
φ100-2200 |
30-120 |
Pure PEEK or CF GF FC etc. |
|
PEEK Tube Type |
|||
|
OD(mm) |
ID(mm） |
Length（mm） |
ST Weight（kg） |
|
φ14 |
φ10 |
1000 |
0.18 |
|
φ17 |
φ10 |
1000 |
0.29 |
|
φ18 |
φ12 |
1000 |
0.28 |
|
φ20 |
φ15 |
1000 |
0.3 |
|
φ22 |
φ17 |
1000 |
0.28 |
|
φ24 |
φ17 |
1000 |
0.4 |
|
φ27 |
φ18 |
1000 |
0.4 |
|
φ28 |
φ23 |
1000 |
0.38 |
|
φ32 |
φ25 |
1000 |
0.6 |
|
φ36 |
φ27 |
1000 |
0.6 |
|
φ39 |
φ28 |
1000 |
0.8 |
|
φ58 |
φ40 |
1000 |
1.9 |
|
φ60 |
φ40 |
1000 |
2.4 |
|
φ63 |
φ44 |
1000 |
2.2 |
|
φ65 |
φ40 |
1000 |
3.0 |
|
φ65 |
φ50 |
1000 |
2.2 |
|
φ70 |
φ50 |
1000 |
2.8 |
|
φ75 |
φ56 |
1000 |
2.9 |
|
φ80 |
φ60 |
1000 |
3.5 |
|
φ86 |
φ66 |
1000 |
3.4 |
|
φ90 |
φ60 |
1000 |
5.5 |
|
φ94 |
φ71 |
1000 |
4.2 |
|
φ95 |
φ70 |
1000 |
5.2 |
|
φ100 |
φ50 |
1000 |
7.9 |
|
φ100 |
φ77 |
1000 |
4.8 |
|
φ100 |
φ80 |
1000 |
4.3 |
|
φ110 |
φ70 |
1000 |
8.4 |
|
φ110 |
φ90 |
1000 |
5.5 |
|
φ112 |
φ83 |
1000 |
6.5 |
|
φ115 |
φ67 |
1000 |
10.7 |
|
φ116 |
φ93 |
1000 |
5.3 |
|
φ120 |
φ80 |
1000 |
8.1 |
|
φ120 |
φ90 |
1000 |
7.9 |
|
φ120 |
φ100 |
1000 |
6.1 |
|
φ122 |
φ101 |
1000 |
5.3 |
|
φ124 |
φ101 |
1000 |
5.8 |
|
φ125 |
φ105 |
1000 |
4.9 |
|
φ130 |
φ95 |
1000 |
9.6 |
|
φ130 |
φ100 |
1000 |
8.5 |
|
φ130 |
φ110 |
1000 |
6.4 |
|
φ134 |
φ106 |
1000 |
7.4 |
|
φ140 |
φ110 |
1000 |
9.5 |
|
φ149 |
φ125 |
1000 |
7.1 |
|
φ150 |
φ95 |
1000 |
15.5 |
|
φ151 |
φ131 |
1000 |
6.0 |
|
φ155 |
φ125 |
1000 |
10.6 |
|
φ157 |
φ122 |
1000 |
11.8 |
|
φ164 |
φ118 |
1000 |
14.0 |
|
φ165 |
φ120 |
1000 |
15.8 |
|
φ165 |
φ135 |
1000 |
11 |
|
φ168 |
φ80 |
1000 |
22.9 |
|
φ170 |
φ146 |
1000 |
8.7 |
|
φ175 |
φ152 |
1000 |
7.9 |
|
φ183 |
φ159 |
1000 |
8.3 |
|
φ190 |
φ130 |
1000 |
20.2 |
|
φ200 |
φ145 |
1000 |
20.2 |
|
φ200 |
φ155 |
1000 |
17.8 |
|
φ220 |
φ180 |
1000 |
18.3 |
|
φ234 |
φ208 |
1000 |
12.9 |
|
φ257 |
φ192 |
1000 |
31.1 |
|
φ258 |
φ219 |
1000 |
20.0 |
|
φ260 |
φ220 |
1000 |
23.4 |
|
φ270 |
φ235 |
1000 |
19.8 |
|
φ282 |
φ259 |
1000 |
14.8 |
|
φ296 |
φ270 |
1000 |
17.4 |
|
φ302 |
φ268 |
1000 |
20.8 |
|
φ324 |
φ295 |
1000 |
19.8 |
|
φ336 |
φ310 |
1000 |
19.7 |
|
φ363 |
φ320 |
1000 |
32.1 |
|
φ372 |
φ343 |
1000 |
24.8 |
|
φ416 |
φ360 |
1000 |
48.3 |
|
φ430 |
φ398 |
1000 |
30.6 |
|
φ482 |
φ445 |
1000 |
36.0 |
|
φ490 |
φ430 |
1000 |
60.3 |
|
φ532 |
φ497 |
1000 |
39.0 |
|
φ630 |
φ590 |
1000 |
54.1 |
