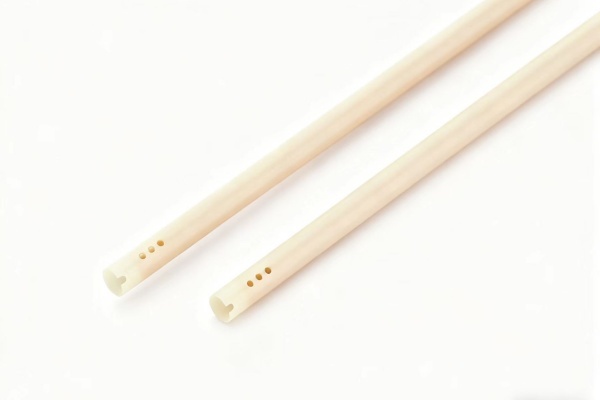

PEEK capillary tube

MATERIAL FEATURE
Our PEEK capillary tube have heat resistance, wear resisitance, fatigue resisitance, radiation resisitance, corrosion resisitance, water hydrolusis resistance, light weight, good self-lubrication, good processing performance, can be subjected to repeated autoclave sterilization. (The glass transition temperature of the compound is TG=143 ℃ and the melting point is Tm=334℃）.

In the table below, you can check the required specifications. Usually, we have samples, please contact us for details.

The size, tolerance, color and length of the micro tubes can be customized according to your requirements.

PEEK capillary tube specifications
OD(mm）	ID(mm）	Length（mm）	OD(mm）	ID(mm）	Length（mm）	OD(mm）	ID(mm）	Length（mm）
0.4	0.25	≥1000	1.58	0.78	≥1000	0.85	0.65	Roll
0.63	0.45	≥1000	1.58	0.88	≥1000	0.93	0.33	Roll
0.63	0.48	≥1000	1.58	0.9	≥1000	1	0.6	Roll
0.7	0.5	≥1000	1.58	1.02	≥1000	1.25	0.9	Roll
0.74	0.5	≥1000	1.6	0.83	≥1000	1.25	1.14	Roll
0.8	0.4	≥1000	1.6	0.85	≥1000	1.44	1.27	Roll
0.8	0.5	≥1000	1.6	0.9	≥1000	1.44	1.28	Roll
0.8	0.55	≥1000	1.78	1.5	≥1000	1.58	0.78	Roll
0.8	0.65	≥1000	1.8	1.4	≥1000	1.6	1	Roll
0.8	0.7	≥1000	2.1	1.25	≥1000	1.6	0.75	Roll
0.83	0.64	≥1000	2.14	1.36	≥1000	1.6	1.4	Roll
0.85	0.72	≥1000	2.2	1.7	≥1000	1.8	1.3	Roll
0.9	0.5	≥1000	2.52	2.32	≥1000	1.8	1.63	Roll
0.9	0.7	≥1000	3	2.6	500	2.2	1.7	Roll
0.9	0.75	≥1000	3.3	2.9	≥1000	3.2	1.6	Roll
1.0	0.7	≥1000	3.45	1.4	≥1000
1.0	0.76	≥1000	3.5	1.45	≥1000
1.0	0.78	≥1000	3.8	3	≥1000
1.01	0.86	≥1000	3.83	3.43	≥1000
1.05	0.6	≥1000	4	3	≥1000
1.14	0.58	≥1000	4.1	3.1	≥1000
1.15	0.41	≥1000	4.2	3.4	290
1.2	1.05	≥1000	4.95	4.55	340
1.25	0.9	≥1000	5	3.95	≥1000
1.3	0.7	≥1000	5	4	300
1.4	0.6	≥1000	5.9	4.5	≥1000
1.4	0.93	≥1000	7.1	6	≥1000
1.5	1.2	≥1000
1.55	0.65	≥1000

Our value-added services are as follows:

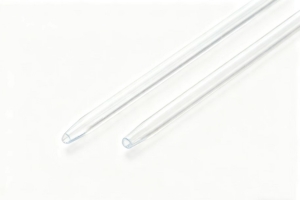

Tip forming:
The mold design is excellent, the molding tip is smooth and mellow. Thus, the friction between the tube

body and human blood vessels and tissues is greatly reduced.

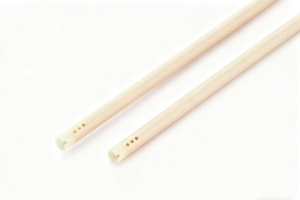

Precision punching:
Precision drilling, according to the shape of the customer processing. multi angle, multi-directional, multi

size, to meet all kinds of drilling needs.

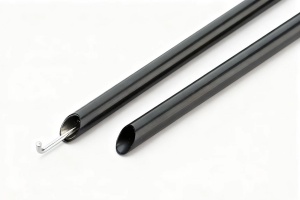

Fusion welding:
Realize the perfect connection of different t conduits, and form the double-layer structure or casing
structure of internal an d external tubes, with smooth transition.

Printing:
Various lines,numbers characters and logos can be printed on the surface of the conduit. with clear
handwriting and firm adhesion.

Assemble:
Can be customized according to customer requiremen.
