10 Years China PEEK Manufacturer
For the PEEK sheet products, on the basis of our existing stock of pure PEEK sheet, we have added carbon fiber PEEK sheets and glass fiber PEEK sheets. The increased inventory can meet your greater choices and demands.
At the same time, we can produce PEEK Machined products. All you need to do is provide us with the product drawings and quantities we require to obtain the quotation.
|
PEEK & PEEK Reinforced Material Introduction |
|
| Virgin PEEK |
Good toughness and impact resistance. It can be disinfected using steam, ethyl alcohol and Y rays,etc. It has been widely used in medical,pharmaceutical and food processing industry. |
|
CF PEEK
(Carbon fiber filled )
|
The carbon fiber reinforced plastic have excellent elastic modulus,mechanical strength and creep resistance and wear resistance. |
|
GF PEEK
(Glass fiber filled )
|
Glass fiber reinforced PEEK. It has an extraordinary rigidity,creep resistance and dimensional stability. It can sustain constant load for a long time under high temperature. It is a ideal material to be used in structural parts. |
|
FC PEEK
(PTFE+Carbon fiber+Graphite filled )
|
It is a compound filled with PTFE,graphite and carbon fiber,It is the ideal material that can be used in the friction range with their low coefficient of friction and wear resistance. |
|
FE PEEK
(PTFE20%+PEEK )
|
Adding a certain proportion of PTFE increases the wear resistance of PEEK and has a low friction coefficient. |
|
PEEK Rod Specifications |
||||
| Product |
OD(mm) |
Length(mm） |
Color |
Basic physical properties |
|
PEEK rod |
φ3-φ260 |
1000 or custom |
Natural/Black |
100% pure PEEK |
|
PEEK-CF30 rod |
φ5-φ150 |
1000 or custom |
Black |
30% carbon fiber filled |
|
PEEK-GF30 rod |
φ8-φ140 |
1000 or custom |
Natural/Black |
30% Glass fiber filled |
|
PEEK-FC30 rod |
φ16-φ70 |
1000 or custom |
Black |
10% Carbon Fiber+10% Graphite+10% PTFE |
|
PEEK-ESD rod |
φ8-φ120 |
1000 or custom |
Black |
Volume Resistivity：106-9 |
|
PEEK-FE20 rod |
φ10-φ30 |
1000 or custom |
Natural |
20% PTFE filled |
|
PEEK Sheet Specifications |
||||
| Product |
Thickness(mm) |
Length*Width(mm） |
Color |
Basic physical properties |
|
PEEK sheet |
1-80 |
600*1200 or 1000*2000 or custom |
Natural/Black |
100% pure PEEK |
|
PEEK-CF30 sheet |
5-150 |
600*1200 or custom |
Black |
30% carbon fiber filled |
|
PEEK-GF30 sheet |
8-70 |
600*1200 or custom |
Natural/Black |
30% Glass fiber filled |
|
PEEK-FC30 sheet |
16-30 |
600*1200 or custom |
Black |
10% Carbon Fiber+10% Graphite+10% PTFE |
|

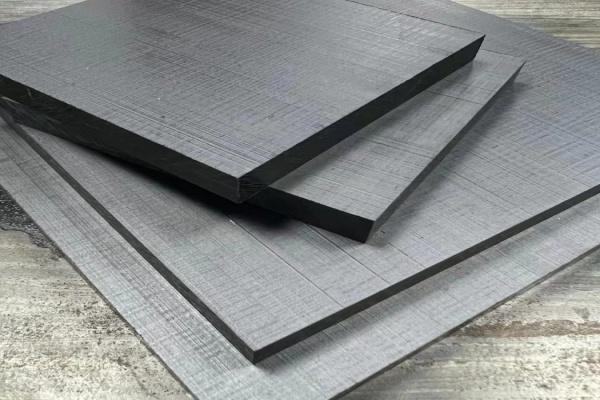

PEEK-ESD sheet |
5-35 |
600*1200 or custom |
Black |
Volume Resistivity：106-9 |
