10 Years China PEEK Manufacturer
PEEK(Polyether ether ketone) is a semi crystalline special engineering plastic with ultra-high performance;Strong chemical resistance, concentrat-ed sulfuric acid is the only universal chemical that can dissolve PEEK: It has excellent heat resistance.wear resistance,flame retardancy,and hydrolysis resistance.

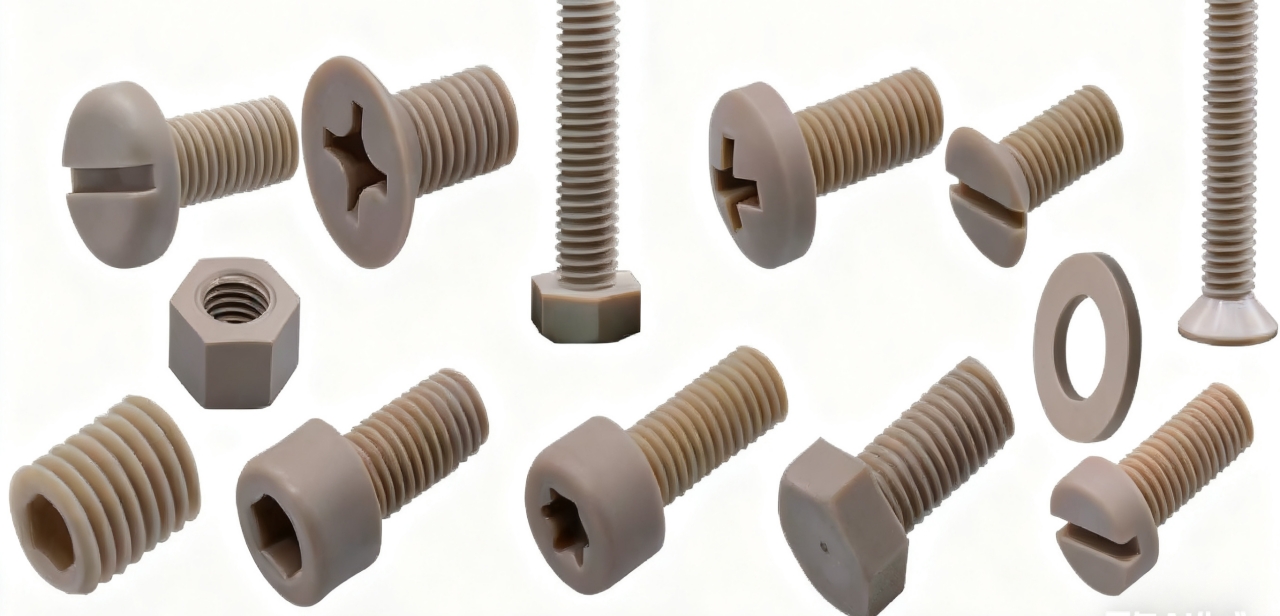

The picture below only shows one type of screw specification. For other types, please contact us.
The picture below only shows one type of screw specification. For other types, please contact us.
| No | Size（S） | （mm）（K) | MOQ | No | Size（S） | （mm）（K) | MOQ |
| M3*6 | 5.35 | 2 | 100 | M10*20 | 15.78 | 6.4 | 50 |
| M3*8 | 5.35 | 2 | 100 | M10*25 | 15.78 | 6.4 | 50 |
| M3*10 | 5.35 | 2 | 100 | M10*30 | 15.78 | 6.4 | 50 |
| M3*12 | 5.35 | 2 | 100 | M10*40 | 15.78 | 6.4 | 50 |
| M3*16 | 5.35 | 2 | 100 | M10*50 | 15.78 | 6.4 | 50 |
| M3*20 | 5.35 | 2 | 100 | M10*65 | 15.78 | 6.4 | 50 |
| M3*25 | 5.35 | 2 | 100 | M10*100 | 15.78 | 6.4 | 50 |
| M4*6 | 6.82 | 2.8 | 100 | M10*110 | 15.78 | 6.4 | 50 |
| M4*8 | 6.82 | 2.8 | 100 | M12*10 | 17.78 | 7.5 | 50 |
| M4*10 | 6.82 | 2.8 | 100 | M12*25 | 17.78 | 7.5 | 50 |
| M4*12 | 6.82 | 2.8 | 100 | M12*30 | 17.78 | 7.5 | 50 |
| M4*16 | 6.82 | 2.8 | 100 | M12*35 | 17.78 | 7.5 | 50 |
| M4*20 | 6.82 | 2.8 | 100 | M12*40 | 17.78 | 7.5 | 50 |
| M4*25 | 6.82 | 2.8 | 100 | M12*45 | 17.78 | 7.5 | 50 |
| M4*30 | 6.82 | 2.8 | 100 | M12*50 | 17.78 | 7.5 | 50 |
| M4*35 | 6.82 | 2.8 | 100 | M12*55 | 17.78 | 7.5 | 50 |
| M5*6 | 7.82 | 3.5 | 100 | M12*60 | 17.78 | 7.5 | 50 |
| M5*8 | 7.82 | 3.5 | 100 | M12*65 | 17.78 | 7.5 | 50 |
| M5*10 | 7.82 | 3.5 | 100 | M12*70 | 17.78 | 7.5 | 50 |
| M5*12 | 7.82 | 3.5 | 100 | M12*75 | 17.78 | 7.5 | 50 |
| M5*16 | 7.82 | 3.5 | 100 | M12*80 | 17.78 | 7.5 | 50 |
| M5*20 | 7.82 | 3.5 | 100 | M12*90 | 17.78 | 7.5 | 50 |
| M5*25 | 7.82 | 3.5 | 100 | M12*100 | 17.78 | 7.5 | 50 |
| M5*30 | 7.82 | 3.5 | 100 | M12*110 | 17.78 | 7.5 | 50 |
| M5*35 | 7.82 | 3.5 | 100 | M14*25 | 20.58 | 8.8 | 50 |
| M5*60 | 7.82 | 3.5 | 100 | M14*30 | 20.58 | 8.8 | 50 |
| M6*6 | 9.82 | 4 | 100 | M14*40 | 20.58 | 8.8 | 50 |
| M6*8 | 9.82 | 4 | 100 | M14*50 | 20.58 | 8.8 | 50 |
| M6*10 | 9.82 | 4 | 100 | M14*60 | 20.58 | 8.8 | 50 |
| M6*12 | 9.82 | 4 | 100 | M14*65 | 20.58 | 8.8 | 50 |
| M6*16 | 9.82 | 4 | 100 | M14*70 | 20.58 | 8.8 | 50 |
| M6*20 | 9.82 | 4 | 100 | M14*80 | 20.58 | 8.8 | 50 |
| M6*25 | 9.82 | 4 | 100 | M14*90 | 20.58 | 8.8 | 50 |
| M6*30 | 9.82 | 4 | 100 | M14*100 | 20.58 | 8.8 | 50 |
| M6*35 | 9.82 | 4 | 100 | M16*20 | 23.58 | 10 | 50 |
| M6*40 | 9.82 | 4 | 100 | M16*30 | 23.58 | 10 | 50 |
| M6*45 | 9.82 | 4 | 100 | M16*40 | 23.58 | 10 | 50 |
| M6*50 | 9.82 | 4 | 100 | M16*50 | 23.58 | 10 | 50 |
| M6*55 | 9.82 | 4 | 100 | M16*60 | 23.58 | 10 | 50 |
| M6*60 | 9.82 | 4 | 100 | M16*65 | 23.58 | 10 | 50 |
| M8*10 | 12.78 | 5.3 | 50 | M16*70 | 23.58 | 10 | 50 |
| M8*12 | 12.78 | 5.3 | 50 | M16*80 | 23.58 | 10 | 50 |
| M8*16 | 12.78 | 5.3 | 50 | M16*90 | 23.58 | 10 | 50 |
| M8*20 | 12.78 | 5.3 | 50 | M16*100 | 23.58 | 10 | 50 |
| M8*25 | 12.78 | 5.3 | 50 | M18*50 | 26.58 | 11.5 | 50 |
| M8*30 | 12.78 | 5.3 | 50 | M18*100 | 26.58 | 11.5 | 50 |
| M8*35 | 12.78 | 5.3 | 50 | M20*50 | 29.58 | 12.5 | 50 |
| M8*40 | 12.78 | 5.3 | 50 | M20*100 | 29.58 | 12.5 | 50 |
| M8*45 | 12.78 | 5.3 | 50 | ||||
| M8*50 | 12.78 | 5.3 | 50 | ||||
| M8*60 | 12.78 | 5.3 | 50 | ||||
| M8*65 | 12.78 | 5.3 | 50 | ||||
| M8*70 | 12.78 | 5.3 | 50 | ||||
| M8*80 | 12.78 | 5.3 | 50 | ||||
| M8*90 | 12.78 | 5.3 | 50 | ||||
| M8*100 | 12.78 | 5.3 | 50 |
