PEEK (Polyetheretherketone) is a high-performance special engineering plastic. Due to its excellent mechanical properties, high-temperature resistance, chemical corrosion resistance, and biocompatibility, it is widely used in aerospace, automotive manufacturing, and medical devices. However, due to its high melting point and special physical and chemical properties, the 3D printing of PEEK materials has higher requirements for equipment and parameter settings. The following are the key parameter settings and explanations for PEEK 3D printing.
1. Temperature Parameters
Nozzle temperature
The melting point of PEEK material is 343℃, but during actual printing, the nozzle temperature should be set between 360℃ and 440℃. An excessively low temperature will prevent the material from fully melting, affecting its fluidity, resulting in a rough surface and internal voids in the printed model; while an excessively high temperature may cause the material to melt too much, leading to dripping, carbonization and other problems, and even affecting the material's performance. During the printing process, it is necessary to make adjustments according to the specific PEEK material brand, printer performance, and the complexity of the model.
Hot bed temperature
The hot bed temperature is generally recommended to be set between 120℃ and 180℃. A higher hot bed temperature can effectively prevent the bottom of the printed piece from warping and ensure the adhesion of the first layer. For some large or complex PEEK models, the hot bed temperature can be appropriately increased to around 180℃ to enhance the adhesion between the model and the hot bed.
Chamber temperature
To ensure the uniformity of temperature during the printing process and reduce thermal stress and warping, the chamber temperature is usually controlled within the range of 90℃ - 160℃. In some high-end PEEK 3D printing devices, the chamber temperature can even reach above 200℃. An appropriate chamber temperature helps maintain the crystalline state of the material and improves the mechanical properties of the printed parts.
II. Printing Speed
The recommended printing speed for PEEK material is generally between 20mm/s and 100mm/s. If the printing speed is too fast, it will cause the material not to melt and deposit fully, resulting in insufficient adhesion between layers and problems such as delamination and fracture; while if the printing speed is too slow, it will reduce the printing efficiency and increase production costs. In actual printing, the bottom layer speed is recommended to be set at around 20mm/s to ensure the flatness and firmness of the bottom layer; for other layers, the printing speed can be set at 30 to 60mm/s depending on the complexity and precision requirements of the model. For some models with low precision requirements, the printing speed can be appropriately increased to improve efficiency.
III. Layer Height
Layer height is an important parameter that affects the printing accuracy and speed. For PEEK material, the recommended layer height is generally between 0.1mm and 0.3mm. A smaller layer height can improve the surface quality and accuracy of the printed object, but it will increase the printing time and material consumption; a larger layer height can increase the printing speed, but it may result in a rough surface. When printing models with high precision requirements, such as medical devices or precision parts, the layer height can be set between 0.1mm and 0.15mm; for some models with lower precision requirements, the layer height can be set between 0.2mm and 0.3mm.
IV. Fill-in Density
The filling density determines the internal structure and material usage of the printed piece. The recommended filling density for PEEK material is generally between 10% and 100%. A higher filling density can enhance the strength and stability of the printed piece, but it will increase material consumption and printing time; a lower filling density can reduce the weight of the printed piece, saving materials and time. In actual printing, the filling density can be flexibly adjusted according to the usage requirements and mechanical performance requirements of the model. For example, for some structural components that need to withstand large loads, the filling density can be set at 85% to 100%; for some appearance parts or lightweight components, the filling density can be appropriately reduced to 30% to 50%.
V. Other Important Notes
Material Drying
PEEK material has a strong hygroscopicity. Before printing, it is necessary to perform sufficient drying treatment. Usually, it is dried in a 120℃ oven for 4-5 hours to remove the moisture in the material and prevent problems such as bubbles and voids during the printing process.
Nozzle Cleaning
Due to the high-temperature processing characteristics of PEEK material, the material inside the nozzle is prone to carbonization, causing blockage. Therefore, during the printing process, the nozzle should be cleaned regularly to ensure its smoothness and the quality of the printing. Post-processing
After the printing process is completed, the PEEK model usually requires post-processing, such as removing the support structure, polishing, coating, etc. Additionally, the printed piece can also undergo annealing treatment to enhance its mechanical properties and crystallinity. For instance, it can be heated at 150℃ for several hours, then heated at 200℃ for several hours, and gradually cooled to room temperature.
In summary, the 3D printing of PEEK materials requires the comprehensive consideration of various parameter settings. By reasonably adjusting parameters such as temperature, speed, layer height, and filling density, the quality and performance of the printed pieces can be effectively improved. At the same time, attention should also be paid to aspects such as material drying, nozzle cleaning, and post-processing to ensure the smooth progress of the printing process and the final performance of the printed pieces.

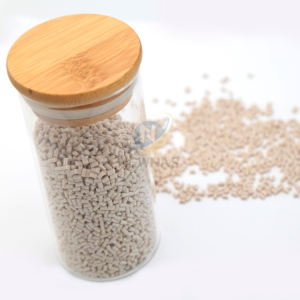

NEWNAS PEEK 6510G Ultra-pure resin pellet is  highly suitable for the extrusion production of 3D printed filaments.

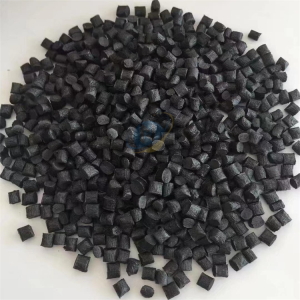

NEWNAS PEEK CF (5%-40%) reinforced resin pellet is  suitable for the extrusion production of 3D printed filaments.

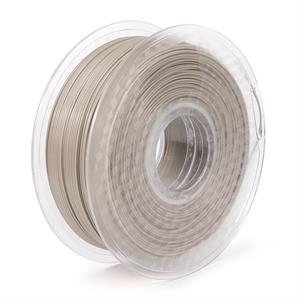

NEWNAS PEEK 1.75mm 3D printed filaments.
