PEEK carbon fiber reinforced, application in humanoid robots

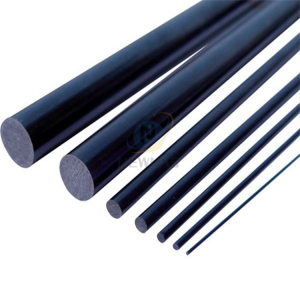

PEEK (polyetheretherketone) carbon fiber reinforced material (PEEK-CF) is a high-performance composite material that combines the characteristics of PEEK resin, such as high temperature resistance, chemical corrosion resistance, and creep resistance, with the advantages of carbon fiber, such as high strength, lightweight, and high rigidity. In the field of humanoid robots, the unique properties of this material make it have significant application potential in several key components, specifically as follows:

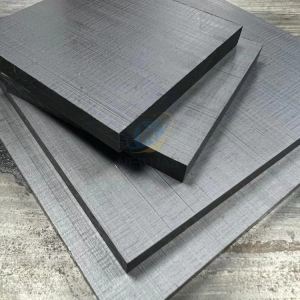

Lightweight structural components
Demand background: Humanoid robots need to imitate human movements, with extremely high requirements for the lightweight of joints and skeletons to reduce inertia, improve response speed, and extend battery life. Advantages of PEEK-CF: Density is only 1.4-1.6 g/cm³ (about half that of aluminum), while the strength is comparable to metals. For example, after carbon fiber reinforcement, the tensile strength of PEEK can reach 200-300 MPa, and the modulus exceeds 20 GPa. Application scenarios: Robot skeletons, joint connecting rods, support frames, etc., can significantly reduce the overall weight and improve motion efficiency.
High-precision joints and transmission components

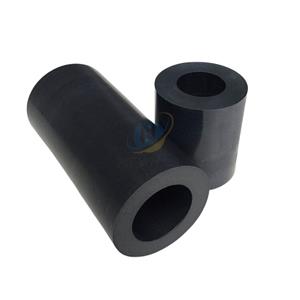

Demand background: Robot joints need to withstand high-frequency dynamic loads and have strict requirements for dimensional stability to avoid accuracy degradation due to thermal expansion or creep. Advantages of PEEK-CF: Low thermal expansion coefficient: The addition of carbon fiber makes the thermal expansion coefficient close to metals (about 2-5×10⁻⁶/K), which can be matched with metal bearings. Self-lubrication: PEEK itself has a low friction coefficient (0.2-0.3), reducing the reliance on lubricants, suitable for manufacturing gears, bearing sleeves, etc. Application scenarios: Reducer gears, harmonic drive components, rotating joint bearings, etc.
High-temperature electronic component housings.
Demand background: Humanoid robots integrate high-power motors and electronic equipment, and the internal temperature may exceed 150°C. Traditional plastics (such as PA, PC) are prone to deformation. Advantages of PEEK-CF: Long-term temperature resistance: Continuous operating temperature can reach 250°C, and short-term tolerance can reach 300°C. Electromagnetic shielding: Carbon fiber gives the material conductivity (surface resistance can be low to 10²-10⁴ Ω/sq), protecting sensitive electronic components. Application scenarios: Motor housings, controller housings, heat dissipation brackets, etc.
Dynamic flexible components
Demand background: Bionic robots need flexible structures (such as fingers, spine) that are both flexible and fatigue-resistant. Advantages of PEEK-CF: High fatigue strength: Maintains performance stability under cyclic loads, for example, after 10⁷ cycles, the strength retention rate is >80%. Controllable stiffness: By adjusting the carbon fiber content (usually 30%-50%) and layup direction, anisotropic mechanical properties can be achieved. Application scenarios: Flexible finger joints, bionic spine modules, foot cushioning structures, etc.
Chemical and wear protection
Demand background: Service robots may come into contact with corrosive environments such as cleaning agents and oil stains, and moving parts are prone to wear. Advantages of PEEK-CF: Chemical resistance: Resistant to acids, alkalis, and organic solvents (except strong oxidants such as concentrated sulfuric acid). Wear resistance: The wear rate is more than 50% lower than that of un-reinforced PEEK, and the PV value (pressure-speed limit) can reach 3 MPa·m/s. Application scenarios: Exoskeleton protective layers, wear-resistant coatings for industrial robot grippers, etc.
Case studies and data comparison

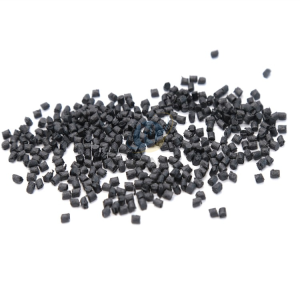

Boston Dynamics Atlas robot: Although the material details are not disclosed, its hydraulic drive system's high-pressure environment (>20 MPa) and lightweight requirements are highly compatible with the characteristics of PEEK-CF. Commercialization cost comparison: The cost of PEEK-CF raw materials is approximately $200-300/kg, with higher processing costs, but the lifespan can be 2-3 times that of metal components, and the total life cycle cost may be lower. Processing difficulty and solutions: PEEK-CF requires high-temperature injection molding (melt temperature > 370°C), and the carbon fibers are prone to wear the molds. Solution: Use hardened mold steel (such as H13) and laser sintering mold technology. Recycling issue: Thermoplastic PEEK can be recycled by hot pressing, but the separation of carbon fibers is difficult. Trend: Develop degradable PEEK matrix or closed-loop recycling processes. Future trend for 3D printing applications: Short-cut carbon fiber reinforced PEEK filaments have been used in fused deposition modeling (FDM), and can be customized for complex topological structures (such as biomimetic honeycomb frameworks). Intelligent material integration: Combine the conductivity of carbon fibers to develop self-sensing structures (such as real-time monitoring of strain and temperature). Summary
The PEEK carbon fiber reinforced material, with its lightweight, high-temperature resistance and high precision characteristics, has overcome the limitations of traditional metals and plastics in humanoid robots. Despite facing challenges in cost and processing, with the advent of large-scale production and technological advancements (such as 3D printing and recycling technology), its penetration rate in the field of high-performance humanoid robots will significantly increase, becoming one of the key materials for achieving bionic movement and long lifespan.
